Which FD Industrial Robot Fits Your Application?
For series production, larger components, and automated welding lines, OTC offers three industrial robots with different strengths: the FD19-V8L for high speed and a slim design, the FD19-V25L for maximum reach without a travel axis. The FD19-BT6 holds a special position: as a versatile 7-axis welding robot, it welds collision-free even on hard-to-reach components, an advantage that particularly pays off in the automotive industry with complex body and chassis parts.

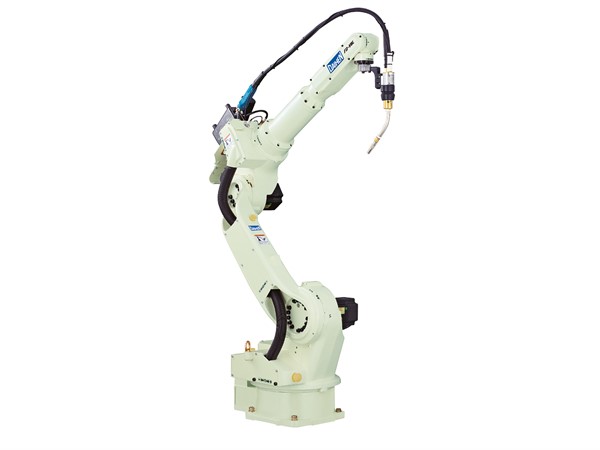

FD19-V8L
Fast, slim welding and handling robot with up to 8 kg payload.

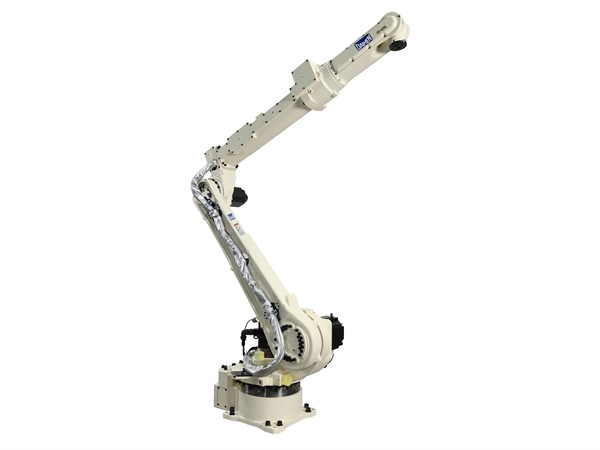

FD19-V25L
3 m reach without a travel axis, for large components and spacious cells.

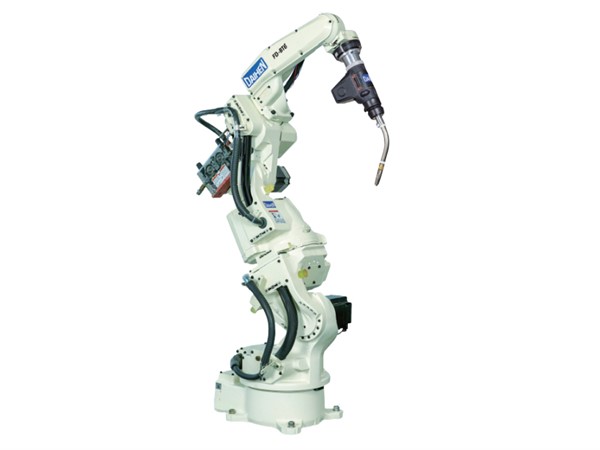

FD19-BT6
The Versatile 7-Axis Robot.
With integrated welding cable, ideal for complex fixtures and circumferential welding.
Comparison Table
Feature | FD19-V8L | FD19-V25L | FD19-BT6 |
|---|---|---|---|
Reach | 1437 mm | 3136 mm | 1435 mm |
Max. Payload | 8 kg | 6 kg (Additional Load Axis 3: 20 kg) | 6 kg (Additional Load Axis 3: 10 kg) |
Axes | 6 | 6 | 7 |
Mounting Type | Floor, Wall, Ceiling | Floor, Wall, Ceiling | Floor |
Special Feature | Highest Speed in Its Class, 30 Percent Slimmer | Largest Reach Without a Travel Axis | 7th Axis for Circumferential Welding Without Interference Contour - Ideal for Complex Automotive Components |
Why the Seventh Axis Makes the Difference:
In tight fixtures or heavily nested components, classic 6-axis robots reach their limits. The FD19-BT6's additional axis allows evasive movements without interrupting the welding path, a decisive advantage especially for frame and chassis parts in the automotive industry.
Which FD Industrial Robot Fits Your Application?
We clarify the component, process, reach, and cycle time, and give you an honest answer on which model from the FD series is the right solution for your production.
